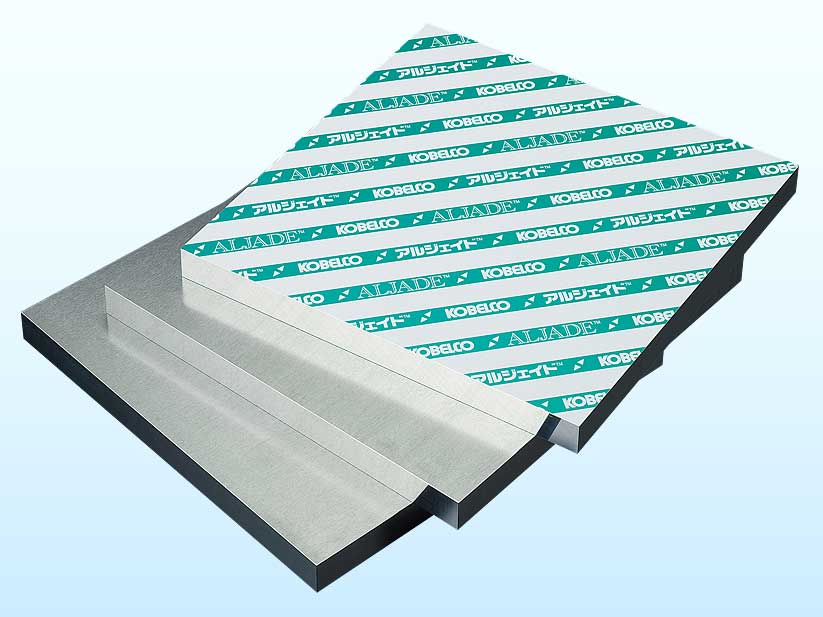

ALJADE™ Kobe Steel, Ltd.
ALJADE™is a 5052 high precision aluminum alloy plate with
greatly improved flatness and thickness tolerance, as well as
reduced residual stress, over JIS standards.
offering reduced cutting time, less annealing after
processing and higher yield rates.
Features
Improved manufacturing processes offer increased flatness.
A superior rolling technology offers approx.1/4 the JIS standard accuracy for thickness.
A distinctive heat treatment process greatly reduces internal residual stress.
Product Size
| Thickness | Width x Length |
|---|---|
| 4～100mm | 1,525×3,050mm |
Thickness Accuracy
(Unit: mm)
| Thickness | 4 | 5 | 6 | 6＜-≦ 12 | 12＜-≦ 16 | 16＜-≦ 19 | 19＜-≦ 21 | 21＜-≦ 22 |
|---|---|---|---|---|---|---|---|---|
| Tolerance | ±0.06 | ±0.07 | ±0.08 | ±0.10 | ±0.15 | ±0.18 | ±0.20 | ±0.22 |
| Thickness | 22＜-≦ 27 | 27＜-≦ 35 | 35＜-≦ 49 | 49＜-≦ 54 | 54＜-≦ 64 | 64＜-≦ 74 | 74＜-≦ 100 | |
| Thickness | ±0.25 | ±0.30 | ±0.40 | ±0.50 | ±0.60 | ±0.65 | ±0.85 |
Surface Flatness
Thickness 4-50mm: 0.2mm or less/M, Thickness 50＜-70mm: 0.6mm or less/M,
Thickness 70＜-100mm: 0.8mm or less/M
＊We have a large stock of it in the country.

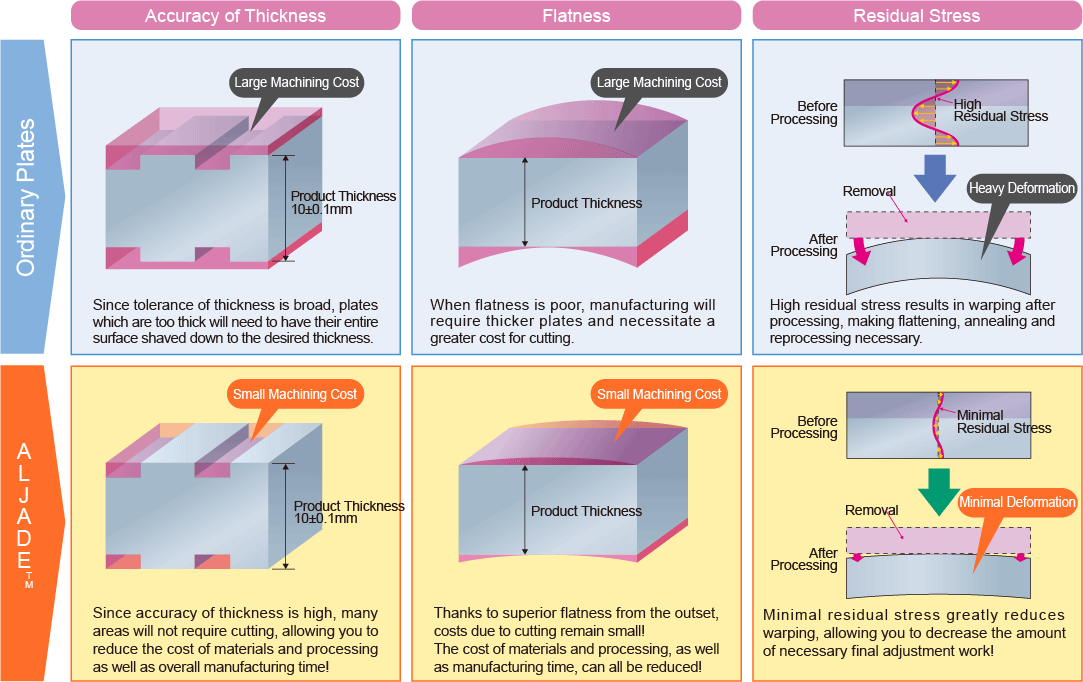

Machining Cost Reduction Model
