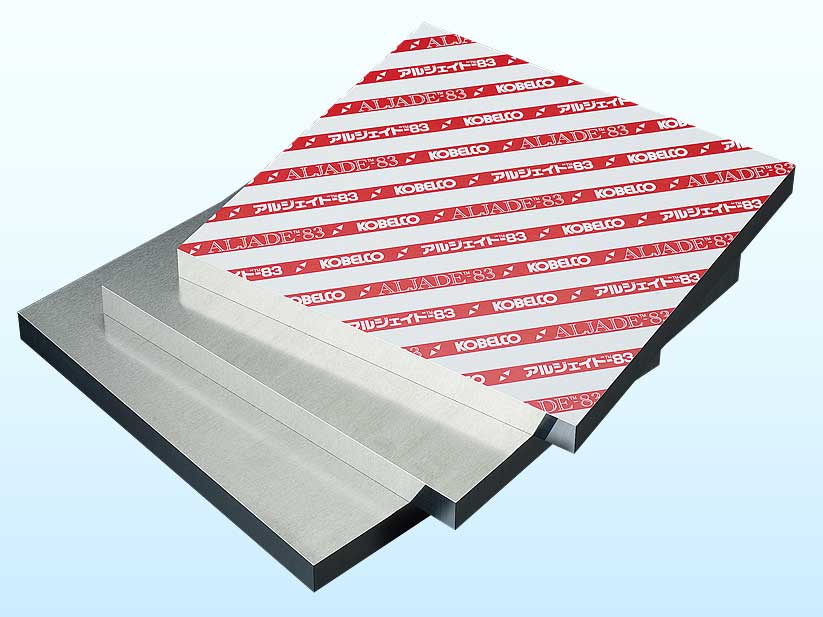

ALJADE™-83 Kobe Steel, Ltd.
5083 boasts the highest strength even among
non-heat-treatable alloys, and is a 5000-series aluminum alloy
with exceptional corrosion resistance properties and weldability.
Compared to JIS standards, ALJADE™-83 offers greatly improved
flatness and thickness tolerance, as well as reduced residual
stress.
Features
Improved manufacturing processes offer increased flatness.
A superior rolling technology offers approx. 1/4 the JIS standard accuracy for thickness.
A distinctive heat treatment process greatly reduces internal residual stress.
Product Size
| Thickness | Width x Length |
|---|---|
| 4～50mm | 1,525×3,050mm |
Thickness Accuracy
(Unit: mm)
| Thickness | 4 | 4＜-≦ 5 |
5＜-≦ 6 |
6＜-≦ 12 | 12＜-≦ 20 |
20＜-≦ 30 |
30＜-≦ 50 |
|---|---|---|---|---|---|---|---|
| Tolerance | ±0.08 | ±0.10 | ±0.12 | ±0.16 | ±0.30 | ±0.40 | ±0.50 |
Surface Flatness
Thickness 4-50mm: 0.4mm or less/M
Machining Cost Reduction Model
