N-FLAT

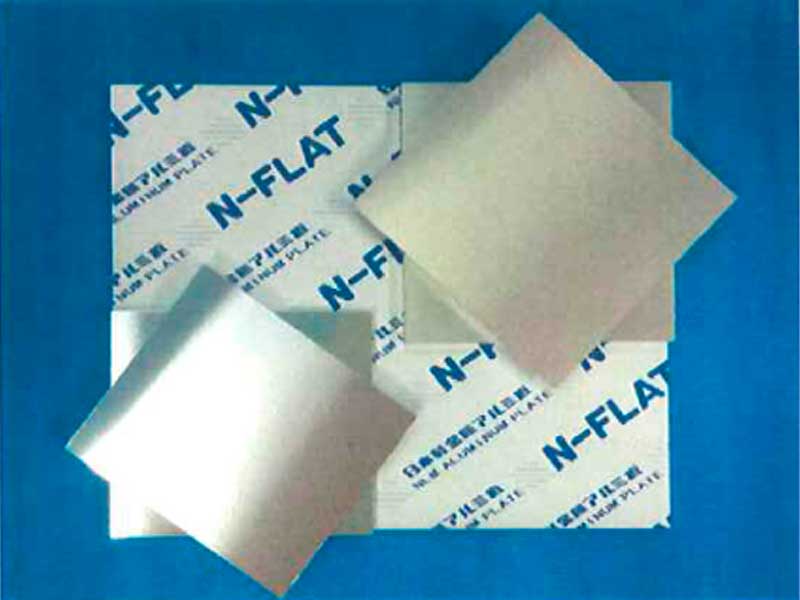

N-FLAT is a rolling-nished 5000 aluminum alloy plate. Its advanced high-precision property helps to reduce customers’ processing costs for cutting component parts such as semiconductor manufacturing equipment and LCD manufacturing equipment.

Features

Ensures thickness tolerance approx. ±0.8 or less.

Major thickness plates ensure surface flatness 0.4～0.5mm/M.

Greatly reduced residual stress over conventional products.

Product Size

Thickness	Width x Length
4～100mm	1,525×3,050mm

Thickness Accuracy

(Unit: mm)

Thickness	4	5	6	6＜-≦ 12	15	16	18	20
Tolerance	±0.06	±0.07	±0.08	±0.10	±0.15	±0.16	±0.18	±0.20
Thickness	22	25	30	30＜-≦ 50	55	60＜-≦ 70	75	75＜-≦ 100
Tolerance	±0.22	±0.25	±0.30	±0.50	±0.60	±0.75	±0.90	±0.10

Surface Flatness

Thickness 4-10mm: 0.5mm or less/M, Thickness 12-30mm: 0.4mm or less/M,
Thickness 30-50mm: 1.0 or less/M, 50-100mm: 1.2mm or less/M
＊We have a large stock of it in the country.
